Chip Shields for Bridgeport Mills

Bridgeport Mill Shield

THE SHIELDS

These specially designed, quality-constructed shields are ideal for Bridgeport mills. They place a barrier between flying chips (swarf), sparks, coolant from the machine, and the operators or other employees in the area. They can easily be moved in or out of position which provides for quick tool and part changes.

These shields are quick and easy to install. They attach directly to existing head machine bolts so they do not require drilling or tapping.

THE SHIELD CONSTRUCTION

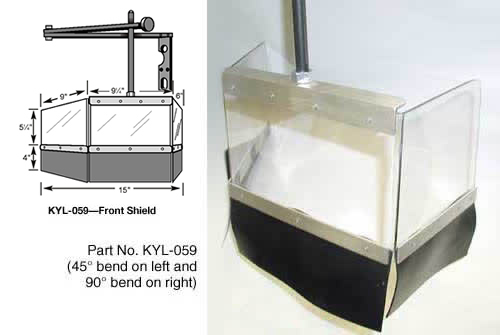

These shields are constructed of high-impact polycarbonate material. Attached at the bottom of each section of the shield is durable, flexible neoprene material to keep flying chips and swarf contained as the bed moves up and down. The front shield is mounted on a heavy-duty universal steel arm which is used to swing it back into the exact position it was in before tool or workpiece changes. The arm is 29" long and has an adjusting knob for raising and lowering the shield. The shield itself can also be used to hold a print.

Bridgeport Mill Shield

REAR SHIELD

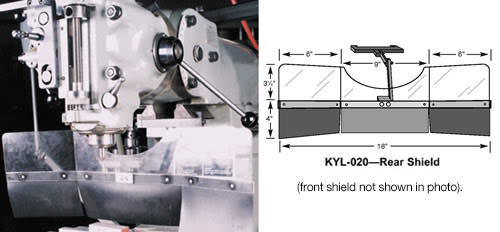

A rear shield is also available to protect the back area of the milling machine. This shield is easy to install and mounts directly onto the machine frame with a setscrew to hold it in place.

Ordering Information

Part #		Description
KYL-019		FRONT SHIELD 9 1/4" H X 19" W FOR BRIDGEPORT MILLING MACHINE (W/45° BEND ON LEFT AND RIGHT SIDES)
KYL-059		FRONT SHIELD 9 1/4" H X 15" W FOR BRIDGEPORT MILLING MACHINE (W/45° BEND ON LEFT SIDE AND 90° BEND ON RIGHT SIDE)
KYL-020		REAR SHIELD 7 1/4" H X 18" W FOR BRIDGEPORT MILLING MACHINE

Replacement Shields

Part #		Description
KYL-065		FRONT REPLACEMENT SHIELD FOR KYL-019 (9 1/4" H x 19" W)
KYL-194		REAR REPLACEMENT SHIELD FOR KYL-020 (7 1/4" H x 18" W)
