Self-Closing Ladder Safety Gates

View Price Page Ladder safety Gate

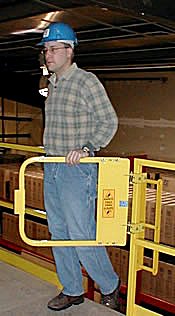

The Ladder Safety Gate is a self-closing swing gate which is economical, reliable, easy to install, and more closely matches the railings and their dimensional requirements provided for by Federal OSHA.

The gate arm is dimensioned to provide maximum opening coverage. The top-rail and bottom-rail are spaced to match the standard railing dimensions required by Federal OSHA.

Our standard Universal Hinge Assembly is versatile, fitting various railing types up to 2’’ O.D. or flat surface mounting. For railings which are larger or uniquely shaped, contact the factory, we are able to provide an adapter kit to fit many railing sizes. The self-closing feature employs two (2) Stainless Steel Torsion Springs. Each gate is capable of universal swing direction. Simple invert gate for opposite swing direction.

Installation is a snap. Our gate comes fully assembled and includes U-bolts for standard installation. Requires only one 1/2’’ wrench and 5 minutes of your time for installation.

As for options, the Ladder Safety Gate comes in 7 nominal sizes and is adjustable laterally up to 3-3/4’’ (-1-1/4’’ to +2-1/2’’ of nominal size) to ensure the gate fits properly in your opening for maximum safety.

You have a choice of a mild steel gate with a Powder Coat Safety Yellow or Hot-dip Galvanized finish, or you can choose a Stainless Steel gate. Custom design and options may be available.

View Standard Installation Drawing

View Price Page
