Flexible-Arm/Snake-Arm/Gooseneck Shields

Flexible Arm Shields

BUY FLEXIBLE ARM SHIELDS ONLINE AT APPLESAFETY.COM!

These high-quality flexible-arm shields can be used on lathes, drills, small mills, grinders, band saws, or similar equipment including woodworking machines. The heavy-duty flexible arms are made of spring steel and are covered with vinyl to protect them from grease, oil, and contaminants that would weaken their holding power. They offer virtually unlimited adjustment possibilities and long-term holding power.

The transparent portion of these shields is constructed of high-impact-resistant, 3/16"-thick clear polycarbonate. The shield places a barrier between an operator and the flying chips (swarf), sparks, and coolant generated at the point of operation. Special shield sizes are available up to 12" x 12"; please contact the factory.

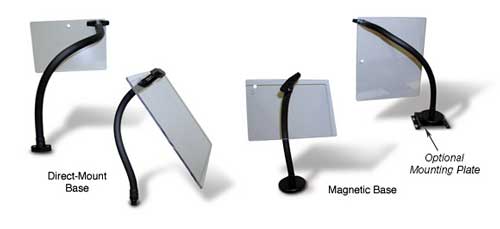

The flexible-arm shields have two mounting options: direct or magnetic. The direct-mount base can be fastened directly to a machine with two 1/4" fasteners (included). The magnetic base consists of a 3"-diameter magnet with 100-lb holding force. If an adequate flat, ferrous mounting surface is not available, an optional steel mounting plate (Part No. FKT-214; see below) can be permanently attached to the machine to hold the magnetic base

Part #		Description
KYL-096		FLEXIBLE-ARM SHIELD ASSY W/6" X 8" FLAT SHIELD & 12" ARM W/DIRECT-MOUNT BASE
KYL-097		FLEXIBLE-ARM SHIELD ASSY W/6" X 8" FLAT SHIELD & 18" ARM W/DIRECT-MOUNT BASE
KYL-098		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" FLAT SHIELD & 12" ARM W/DIRECT-MOUNT BASE
KYL-099		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" FLAT SHIELD & 18" ARM W/DIRECT-MOUNT BASE
KYL-100		FLEXIBLE-ARM SHIELD ASSY W/6" X 8" FLAT SHIELD & 12" ARM W/MAGNETIC BASE
KYL-101		FLEXIBLE-ARM SHIELD ASSY W/6" X 8" FLAT SHIELD & 18" ARM W/MAGNETIC BASE
KYL-102		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" FLAT SHIELD & 12" ARM W/MAGNETIC BASE
KYL-103		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" FLAT SHIELD & 18" ARM W/MAGNETIC BASE
KYL-132		FLEXIBLE-ARM SHIELD ASSY W/6" X 8" FLAT SHIELD & 24" ARM W/DIRECT-MOUNT BASE
KYL-133		FLEXIBLE-ARM SHIELD ASSY W/6" X 8" FLAT SHIELD & 24" ARM W/MAGNETIC BASE
KYL-134		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" FLAT SHIELD & 24" ARM W/DIRECT-MOUNT BASE
KYL-135		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" FLAT SHIELD & 24" ARM W/MAGNETIC BASE
KYL-136		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (7" FRONT) & 12" ARM W/DIRECT-MOUNT BASE
KYL-137		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (7" FRONT) & 18" ARM W/DIRECT-MOUNT BASE
KYL-138		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (7" FRONT) & 24" ARM W/DIRECT-MOUNT BASE
KYL-139		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (7" FRONT) & 12" ARM W/MAGNETIC BASE
KYL-140		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (7" FRONT) & 18" ARM W/MAGNETIC BASE
KYL-141		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (7" FRONT) & 24" ARM W/MAGNETIC BASE
KYL-142		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (10 3/8" FRONT) & 12" ARM W/DIRECT-MOUNT BASE
KYL-143		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (10 3/8" FRONT) & 18" ARM W/DIRECT-MOUNT BASE
KYL-144		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (10 3/8" FRONT) & 24" ARM W/DIRECT-MOUNT BASE
KYL-145		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (10 3/8" FRONT) & 12" ARM W/MAGNETIC BASE
KYL-146		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (10 3/8" FRONT) & 18" ARM W/MAGNETIC BASE
KYL-147		FLEXIBLE-ARM SHIELD ASSY W/30º SHIELD (10 3/8" FRONT) & 24" ARM W/MAGNETIC BASE
KYL-148		FLEXIBLE-ARM SHIELD ASSY W/30º & 90º SHIELD (10 3/8" FRONT) & 12" ARM W/DIRECT-MOUNT BASE
KYL-149		FLEXIBLE-ARM SHIELD ASSY W/30º & 90º SHIELD (10 3/8" FRONT) & 18" ARM W/DIRECT-MOUNT BASE
KYL-150		FLEXIBLE-ARM SHIELD ASSY W/30º & 90º SHIELD (10 3/8" FRONT) & 24" ARM W/DIRECT-MOUNT BASE
KYL-151		FLEXIBLE-ARM SHIELD ASSY W/30º & 90º SHIELD (10 3/8" FRONT) & 12" ARM W/MAGNETIC BASE
KYL-152		FLEXIBLE-ARM SHIELD ASSY W/30º & 90º SHIELD (10 3/8" FRONT) & 18" ARM W/MAGNETIC BASE
KYL-153		FLEXIBLE-ARM SHIELD ASSY W/30º & 90º SHIELD (10 3/8" FRONT) & 24" ARM W/MAGNETIC BASE
KYL-154		FLEXIBLE-ARM SHIELD ASSY W/90º SHIELD (11" FRONT) & 12" ARM W/DIRECT-MOUNT BASE
KYL-155		FLEXIBLE-ARM SHIELD ASSY W/90º SHIELD (11" FRONT) & 18" ARM W/DIRECT-MOUNT BASE
KYL-156		FLEXIBLE-ARM SHIELD ASSY W/90º SHIELD (11" FRONT) & 24" ARM W/DIRECT-MOUNT BASE
KYL-157		FLEXIBLE-ARM SHIELD ASSY W/90º SHIELD (11" FRONT) & 12" ARM W/MAGNETIC BASE
KYL-158		FLEXIBLE-ARM SHIELD ASSY W/90º SHIELD (11" FRONT) & 18" ARM W/MAGNETIC BASE
KYL-159		FLEXIBLE-ARM SHIELD ASSY W/90º SHIELD (11" FRONT) & 24" ARM W/MAGNETIC BASE
KYL-160		FLEXIBLE-ARM SHIELD ASSY W/8" X 10" CONCAVE SHIELD & 12" ARM W/DIRECT-MOUNT BASE
KYL-161		FLEXIBLE-ARM SHIELD ASSY W/8" X 10" CONCAVE SHIELD & 18" ARM W/DIRECT-MOUNT BASE
KYL-162		FLEXIBLE-ARM SHIELD ASSY W/8" X 10" CONCAVE SHIELD & 24" ARM W/DIRECT-MOUNT BASE
KYL-163		FLEXIBLE-ARM SHIELD ASSY W/8" X 10" CONCAVE SHIELD & 12" ARM W/MAGNETIC BASE
KYL-164		FLEXIBLE-ARM SHIELD ASSY W/8" X 10" CONCAVE SHIELD & 18" ARM W/MAGNETIC BASE
KYL-165		FLEXIBLE-ARM SHIELD ASSY W/8" X 10" CONCAVE SHIELD & 24" ARM W/MAGNETIC BASE
KYL-166		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" CONCAVE SHIELD & 12" ARM W/DIRECT-MOUNT BASE
KYL-167		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" CONCAVE SHIELD & 18" ARM W/DIRECT-MOUNT BASE
KYL-168		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" CONCAVE SHIELD & 24" ARM W/DIRECT-MOUNT BASE
KYL-169		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" CONCAVE SHIELD & 12" ARM W/MAGNETIC BASE
KYL-170		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" CONCAVE SHIELD & 18" ARM W/MAGNETIC BASE
KYL-171		FLEXIBLE-ARM SHIELD ASSY W/10" X 12" CONCAVE SHIELD & 24" ARM W/MAGNETIC BASE

BUY FLEXIBLE ARM SHIELDS ONLINE AT APPLESAFETY.COM!

Replacement Shields

Replacement Shields Only

Part #		Description
KYL-078		REPLACEMENT SHIELD 6" X 8" FLAT FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-077		REPLACEMENT SHIELD 10" X 12" FLAT FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-012		REPLACEMENT SHIELD W/30° ANGLE & 7" FRONT
KYL-017		REPLACEMENT SHIELD W/30° ANGLE & 10 3/8" FRONT
KYL-018		REPLACEMENT SHIELD W/90° ANGLE
KYL-080		REPLACEMENT SHIELD 8" X 10" CONCAVE FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-081		REPLACEMENT SHIELD 10" X 12" CONCAVE FOR KYL SERIES UNIVERSAL CHIP SHIELD
KYL-126		REPLACEMENT SHIELD W/30° & 90° ANGLE & 10 3/8" FRONT
